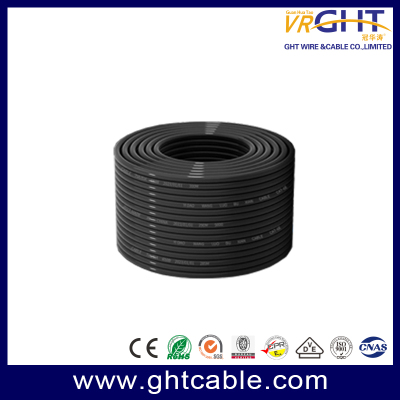

Indoor Outdoor CAT6 UTP Network Cable Black PVC
Specification | |
Model Name | Cat6 Cable U/UTP |
Place of Origin | Guangdong, China |
Number of Conductors | 8 |
Certification | CPR CE |
Braiding Density | N/A |
Type | Cat6 |
Brand Name | VRGHT |
Shielding | Unshielding |
Jacket Material | PVC |
Foil Material | N/A |
Working Capacitance(Max.) | 5.4Nf/100M |
Insulation Resistance | 10000 MOhm.km |
Transmission Velocity | 0.65 |
Operating Temperation | -20 °C - +65 °C |
PVC Jacket Color | As Client's Request. |
Marking On Jacket | On your request (Print your brand) |
●supports Gigabit Ethernet (10000 Base-T) standard. Operates at a bandwidth up to 250 Mhz
●This cable well exceeds the requirements of TIA/EIA-568 and ISO/IEC 11801
●Insulation: HD-PE
●24 AWG conductor
●Sheath: PVC , Black color
Features of product:
Comply with CAT6 Cable specifications

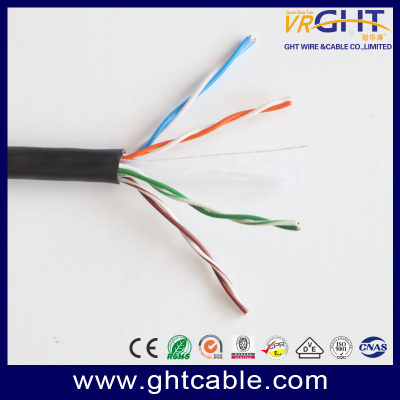

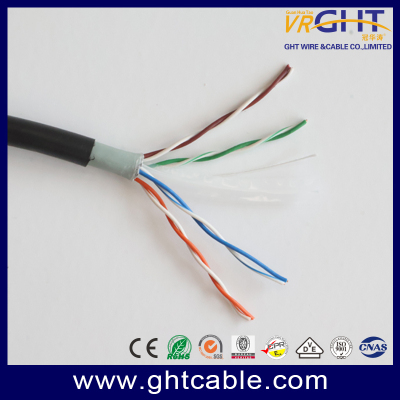

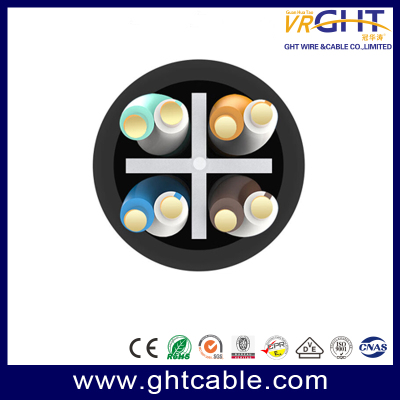

Four unshielded twisted pairs cable
24AWG conductor
Various conductors specification are available
PVC/PE outer skin are available, color customization
Standard Specifications:
Category: CAT6 Solid cable
Conductor: 24AWG conductor
Insulation: HD-PE
Insulation Thickness:0.3mm±0.02mm
Insulation diameter1.0mm±0.02mm
Sheath: PVC
Cable Diameter: 6.0mm±0.2mm
Color:Black/ customized
Printing: Each meter printed with sequential length counter
